Flash Joule Heating — Articles & Patents

What this source is

The source dossier, titled "Flash Joule Heating -- Articles & patents" and hosted at [source note 6] (retrieved 2026-09-17 via Firecrawl), is a secondary compilation. It does not present original the source archive writing or experiments. Instead it gathers, in sequence:

1. a vendor explainer page (Metallium Inc., metalliuminc.com);
2. Rice University news coverage and journal abstracts (JACS, Science Advances);
3. a preprint on a low-cost arc-welder scale-up;
4. a long excerpt from the 2025 Nature Reviews Clean Technology review "Flash Joule heating for synthesis, upcycling and remediation" (Bing Deng et al., vol. 1, pp. 32–54), including its roughly 100-item reference list;
5. a patent section listing roughly thirty filings with abstract-style summaries.

The dossier is therefore a link-and-abstract collection, not a validation. Every number in it is author-reported or applicant-claimed. It includes peer-reviewed experimental literature alongside reviews, promotional material and patent abstracts. The compilation is a map to those different records. A result must be traced to its own paper, sample, method and scale; it is inaccurate to dismiss the entire field as having no experimental evidence.

What flash Joule heating is

Flash Joule Heating (FJH) is a materials-processing technique in which a short, high-power electrical pulse is passed directly through a feedstock, so that the material itself acts as the resistive heating element. The dossier's review excerpt gives the operating envelope:

• current density above 10 A mm⁻²;
• temperatures above 3,000–3,500 °C;
• heating rates of 10²–10⁵ °C s⁻¹;
• cooling rates of 10²–10⁴ °C s⁻¹.

The physical basis is Joule's law, Q ∝ I²Rt, credited in the review's reference list to James P. Joule's 1841 Proc. R. Soc. Lond. paper "On the production of heat by voltaic electricity." Because the current passes through the sample rather than through an external heating element, the review claims approximately 100% sample heating efficiency — the central efficiency argument for FJH over resistance furnaces, which must transfer heat into the load.

The dossier distinguishes direct Joule heating (the feedstock is the resistor) from indirect Joule heating (resistance furnaces and similar). It also places FJH alongside carbothermal shock, a related direct-heating method using metal feedstocks on a carbon substrate.

Hardware and reactor design

The review excerpt describes a typical FJH reactor as a fused quartz tube with brass or graphite electrodes, the feedstock compressed between them, in either a sealed or vented vessel. The dossier's hardware taxonomy separates:

• capacitor-based systems, which discharge a stored charge in a single pulse, and
• continuous (a.c./d.c.) systems, which sustain processing.

A later patent entry (US2023262845) covers a variable-frequency drive with pulse-width-modulated current and temperature feedback for FJH, and CN120557943 describes a sleeve-type FJH device. CN115318219 covers a needle-electrode discharge tube and Joule heating equipment.

For feedstocks that do not conduct well enough to be flashed directly, the dossier describes flash-within-flash (FWF) Joule heating (WO2025042774): an outer vessel is flashed and drives conversion of an inner feedstock by indirect heating. A related two-step FJH approach first runs a low-current carbonization step (about 10 s) to raise conductivity, then applies the high-current flash; this reportedly reduces the conductive-additive requirement from 10–20 wt% to 2–3 wt% carbon black, with the additives themselves co-converting to graphene.

Reported applications and figures

The following are the dossier's headline claims. All are author-reported in abstracts, news items or a review excerpt, or applicant-claimed in patent abstracts.

Graphene and carbon nanomaterials

• Current and pulse-width control tunes product from amorphous carbon through turbostratic graphene to ordered AB/ABC graphene/graphite; a JACS abstract reports that the electric field catalyzes graphene formation and lowers the activation energy (supported by DFT).
• Flash graphene reportedly raises cement compressive strength by about 25% at 0.05 wt% loading.
• Surface areas up to 1,338 m² g⁻¹ are reported via a molten-salt route; carbon nanotube yield up to 90%; carbon purity up to 98% from waste plastics.
• An arc-welder scale-up preprint (Lu Eddy) reports a $120 welder plus a $260 reactor producing 3 kg/h graphene, and kg/day of SiC, CNTs, SnSe₂ and SnS₂.
• FeCl₃ at below 1 wt% reportedly catalyzes 1D CNTs/nanofibres; calcium salts act as blowing agents/proppants to give holey, wrinkled flash graphene.
• Biomass-to-graphene via two-step pyrolysis plus FJH is reported at 21.6 g h⁻¹ in an integrated automatic system.

Rare-earth and critical-metal recovery

• FJH-Cl₂ (chlorination-assisted FJH) is reported to recover rare earths from waste magnets in a single step at >90% purity and >90% yield, with 87% energy, 84% GHG and 54% operating-cost reductions and 100% elimination of water and acid use versus hydrometallurgy. The separation exploits free energies of formation and boiling points of metal chlorides (electrothermal chlorination / carbochlorination, evaporative separation).
• CN120519716 claims rare-earth recovery from waste FCC (fluid catalytic cracking) catalyst by Joule-heat flash deconstruction plus glycine selective leaching and oxalic acid precipitation, with La and Ce leaching efficiency "up to 95% or above."
• CN120589728 claims germanium extraction from lignite by heating to 500–3000 °C for 0.1–10 s in vacuum or protective atmosphere, cycled, yielding a germanium-rich condensate plus hard carbon.
• US2023374623 covers metal recovery from ores, fly ash and bauxite residue.

Battery recycling

• Pulsed d.c. FJH reportedly heats battery black mass above 2100 K in seconds, giving roughly a 1000-fold increase in leaching kinetics with dilute 0.01 M HCl (Science Advances abstract).
• The review reports metal recovery yield improved from below 35% to above 98% via black-mass FJH activation — thermal decomposition of the SEI and carbothermic reduction of spent cathodes (LiNiₓMnᵧCo₁₋ₓ₋ᵧO₂, LiCoO₂, LiNiₓCoᵧAl₁₋ₓ₋ᵧO₂, LiFePO₄) to lower oxidation states or metallic form.
• Direct (non-destructive) recycling: graphite anode regeneration in 1 second with an SEI-derived carbon shell and >100% initial Coulombic efficiency (claimed superior to commercial graphite); LiCoO₂ relithiation; combined magnetic separation plus solid-state relithiation giving about 98% metal recovery.
• US2024120506 and CN117015880 claim solvent-free, water-free FJH over milliseconds combined with magnetic separation to recover Li, Co, Ni and Mn "with high yields up to 98%," with an optional 0.01 M HCl rinse and graphite purification for anodes.
• WO2024097668 claims recovery and reuse of conductive additives at ">85%" by sieving, centrifugation or filtration.

Waste upcycling and fuels

• Glass-fibre-reinforced plastics are converted to phase-controllable SiC by carbothermic reduction; FJH operating cost is reported at about 0.2% of solvolysis and 3.4% of incineration for equivalent output.
• Photovoltaic silicon waste is converted to silicon nanowire electrodes.
• FJH plastic-to-hydrogen: carbonization releases H₂ at efficiencies up to 93%, with 90 vol% H₂ product distribution and no CO₂ from polyolefins, catalyst-free.
• Electrified spatiotemporal heating / rapid Joule-heating depolymerization reports 36% monomer recovery for polypropylene and 43% for PET, with H-ZSM-5 catalyst for light olefins C2–C4.
• WO2025199222 covers iron-ore reduction using plastic-derived H₂ and solid carbon as reductants with continuous replenishment; CN120772003 covers vanadium-titanium magnetite separation by Joule-heat flash reduction plus magnetic separation.

Environmental remediation

• Heavy-metal evaporative removal of 70–90% just below 3,000 °C; residual heavy metals reportedly within safe limits after 2–3 pulses at 120 V.
• PFAS electrothermal mineralization to NaF/CaF₂; soil remediation with >80% Cd/Hg/Pb removal per pulse and >99% PFAS removal at kg scale without external reagents.
• Fe(0)–C composites for reductive remediation; a VOC catalytic oxidation system reported at 87% lower input power than a conventional furnace.
• CN120619034 covers heavy metals in waste-incineration fly ash, with fly-ash resistance set at ≤3 Ω and low-voltage pulse pretreatment plus controlled flash voltage/time/frequency to promote Pb, Zn and Cd volatilization.
• CN118359200 covers quartz sand purification by flash heating/cooling to burst inclusions.

Materials processing and electrocatalysis

• Flash sintering (field-assisted sintering) of ceramics, including room-temperature ZnO flash sintering without a furnace body (CN119638402) and a general flash sintering method (US2023278932).
• CN118387891 claims a metal boride water-electrolysis catalyst (RuB₂) made by flash evaporation Joule heat, with overpotential as low as 15 mV at 10 mA/cm² and stability above 20 h.
• CN120681759 claims SiC micro-nano particles prepared in under one second without catalyst, pretreatment or preheating, from industrial carbon/silicon waste.
• CN120698437 covers a lignin hard carbon anode via Joule thermal flash evaporation with vortex-layer carbon stacking under an electric field.
• CN118996481 covers a biomass carbon composite for electrocatalytic CO₂ reduction; CN119591095 covers plasma-assisted FJH graphene equipment; CN119591096 covers integrated graphene plus SiC nanowire equipment; WO2025039082 covers FJH carbon nanotubes; CN120646820 covers biomass-tar modified flash graphene; CN120081420 covers a natural-mineral wave-absorbing material.

Technoeconomics and life-cycle assessment

The review excerpt reports a 30% GHG reduction for coal fly-ash reuse in cement versus landfilling; 86–94% emission and energy reduction for CNT/nanofibre FJH versus conventional routes; and 5–70% operating-expense reduction for soil remediation. The review's own limitations section acknowledges that most LCA/TEA studies are preliminary and omit rebound effects (both direct and indirect), and recommends uncertainty analysis.

The patent list

The dossier's patent section lists roughly thirty filings. The table below reproduces the identifiers and subjects as given in the compilation.

Limitations, contradictions and unresolved questions

• Different evidence types. Published experimental results, review summaries, preprint scale-up claims and patent proposals need separate assessment. This compilation alone does not establish independent replication of each result. Patent abstracts are not performance demonstrations.

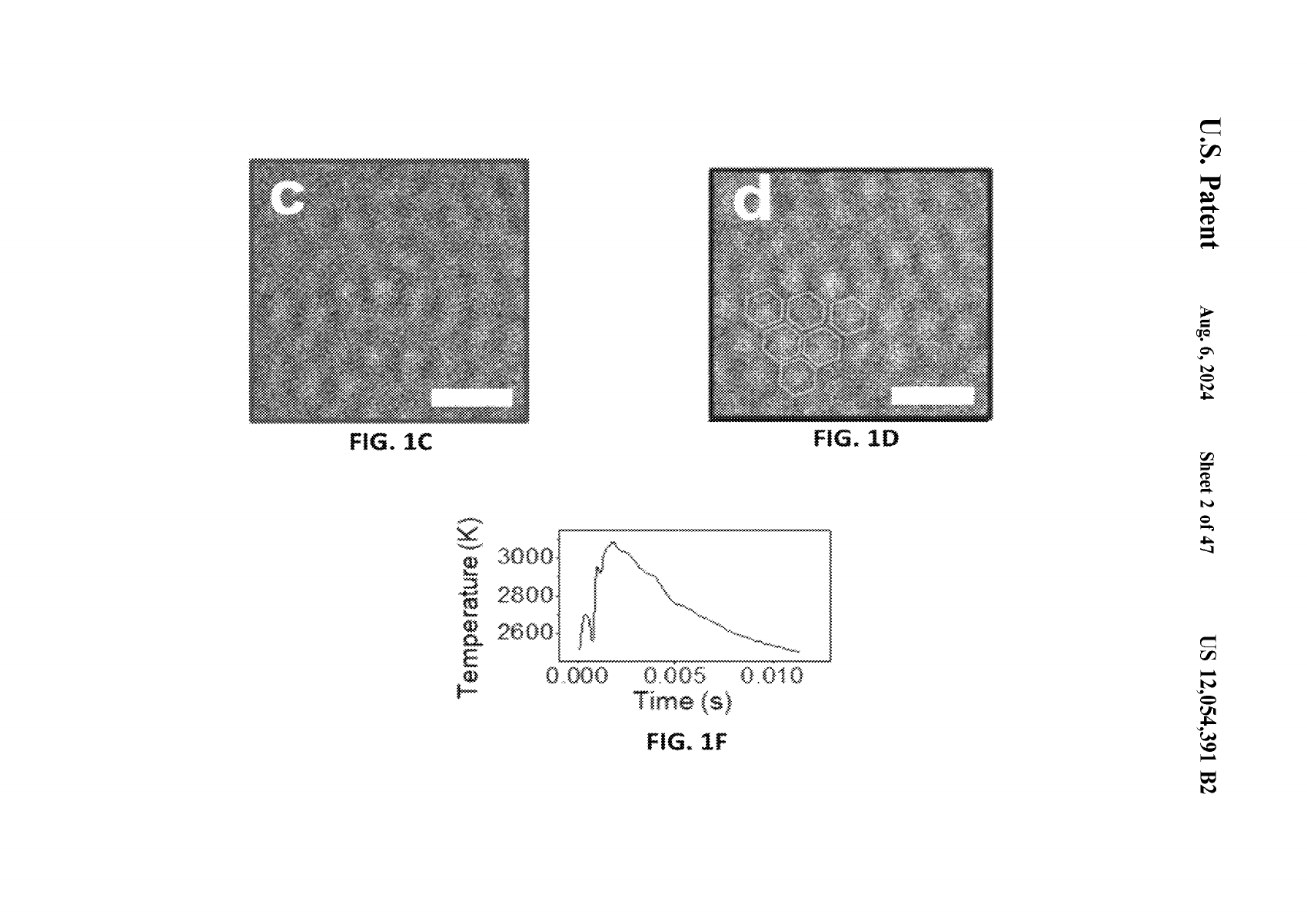

• Duplicated entries. US2025236521/CA3252464, US2024251581/AU2024251581, US2024116094/CA3209120 appear as pairs; US12054391 and WO2025097139 each appear twice. Whether these are intentional family listings or compilation artifacts is unresolved.
• Mismatched abstract. The CN119707477 entry ("magnesium aluminate spinel") carries abstract text that repeats the molybdenite wave-absorber description — an evident copy error in the compilation. Whether the error originates in the source page or in transcription is unknown.
• Unnamed assignees. The supplied text names no assignees. The dossier attributes the patent family to the Rice University / James M. Tour orbit, but Chinese national filings (CN numbers) appear without named applicants, so the split between Rice/Tour filings and independent Chinese filings cannot be determined from this source.
• No prosecution status. Granted-versus-pending status, claim scope and commercial deployment are not given.
• Self-acknowledged gaps. The review itself notes that most LCA/TEA are preliminary, that rebound effects are omitted, and that inorganic synthesis work is at gram scale while graphene work reaches larger scale.
• Scale-up assertions. Claims of "industrial scale" appear without named industrial partners in the excerpted text.

Related work and context

The dossier sits within the source archive's materials and energy holdings. It is the anchor for the wiki's Flash Joule Heating (FJH) concept page and connects to Joule Heating, Turbostratic Graphene, Flash-Within-Flash (FWF) Joule Heating, Battery Black-Mass FJH Activation and Environmental Remediation by Flash Joule Heating. A claims-versus-evidence comparison is maintained at Flash Joule Heating Claims vs. Evidence: The Dossier's Figures and the Absence of Independent Verification. No cross-links to other archive dossiers (for example boron arsenide or DNA nanolattices) are supported beyond shared archive provenance.
